The V-Cycle Model

The V-Model sometimes referred to as the "Vee Model", encompasses a spectrum of models that serve different purposes within the domain of systems development.

The term "V-Model" is used to describe anything from a conceptual tool employed to distill the intricate aspects of systems development into a more comprehensible format, to meticulously structured development lifecycle models and project management models.

The defining characteristic of the V-Model is its distinctive 'V' shape, which reflects the correspondence between each development phase and its corresponding testing phase.

The V-Cycle Model is a framework widely used in embedded system design and development, providing a structured approach to tackle complex design challenges.

This guide will walk you through the stages of the V-Cycle Model, its advantages, and how it aligns with the unique requirements of embedded systems.

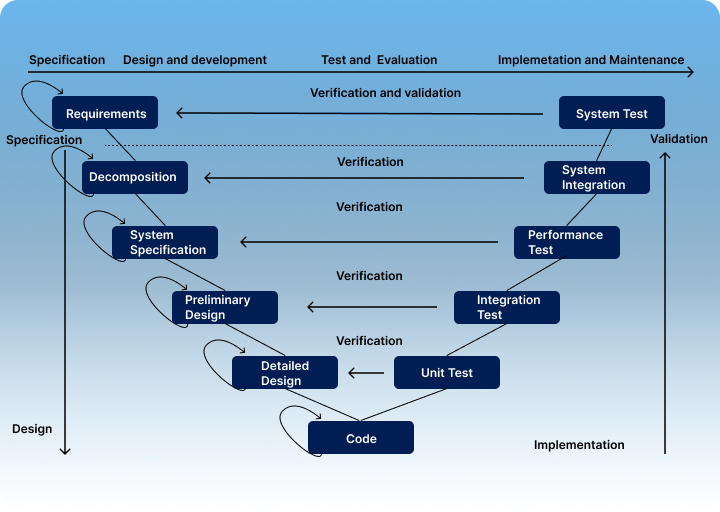

v-cycle model

In other words, every stage of development has a directly associated testing phase, highlighting the importance of verification and validation in the development process.

This relationship between the development and testing stages is clearly illustrated in the figure.

This symmetry ensures that for each step taken in the system's development, there is a corresponding check or test to validate the work done, creating a system that emphasizes quality and reliability.

What is the V-Cycle Model?

The V-Cycle Model, also known as the V-Model, is a graphical representation of a systems development lifecycle. It is called the "V-Cycle" because its process steps bend upwards after the coding phase, forming a V shape.

This model emphasizes verification and validation of the product in early development stages.

Understanding the V-Cycle Model

The V-Cycle Model can be thought of as a mountain trail. On the way up, you plan your journey and prepare your equipment (requirements and design). At the top, you set up camp (implementation). On the way down, you verify that you've reached all the waypoints (testing and integration).

The "Upward" Phase: Design

System Requirements

This is the stage where you define what the system should do. This could include functional requirements (what tasks the system should perform) and non-functional requirements (constraints like cost and size).

System Design

Here, you decide how the system will fulfill its requirements. This involves selecting the architecture, components, and interfaces for the system.

Component Design

In this stage, you design the individual components that make up the system. Each component's design should enable it to fulfill its part of the system requirements.


The "Peak": Implementation

Coding

This is where the design is transformed into code. Each component is coded according to its design, and the pieces are gradually built into a complete system.


The "Downward" Phase: Verification and Validation

Component Testing

In this stage, you test each component individually to ensure it works as designed.

Integration Testing

Here, you start putting the components together and testing them as a group. The aim is to identify any problems that arise from the interaction between components.

System Testing

This is the final testing stage, where the complete system is tested. The system is checked against the original requirements to ensure it behaves as expected.

Advantages of the V-Cycle Model

Early Error Detection

With its emphasis on testing throughout the development process, the V-Cycle Model facilitates early error detection and correction, reducing costs and accelerating time to market.

Structured Approach

The V-Cycle Model offers a clear, step-by-step approach to system development, making it easier to manage and control the process.

Traceability

Each test stage in the V-Cycle Model corresponds to a specific design stage, improving traceability. This traceability assists in tracking changes and understanding the impact of modifications.

Quality Assurance

The rigorous testing and validation steps ensure the delivery of a high-quality, reliable product.

Techniques and Tools Used in Each Stage

Each stage of the V-Cycle Model leverages specific techniques and tools to achieve its objectives:

System Requirements

Techniques used at this stage include brainstorming, requirements elicitation through interviews or questionnaires, and formal methods like the use of UML (Unified Modeling Language). Tools might include requirements management software like IBM DOORS or Jama Software.

System Design

Techniques include top-down design and bottom-up design. Tools could be design software like Enterprise Architect, Draw.io or Lucidchart.

Component Design

Techniques often involve detailed design principles like encapsulation, modularity, and information hiding. Tools might include CAD software for hardware components or IDEs (Integrated Development Environments) for software components.

Coding

Techniques include various programming paradigms like procedural, object-oriented, or functional programming, depending on the system requirements. Tools include compilers, debuggers, and other software development tools.

Component Testing

Techniques include unit testing and white-box testing. Tools might include unit test frameworks like JUnit or NUnit.

Integration Testing

Techniques involve incremental integration testing approaches like top-down, bottom-up, or sandwich testing. Tools might include continuous integration tools like Jenkins or Travis CI.

System Testing

Techniques at this stage are typically black-box testing techniques like functional testing, non-functional testing, and regression testing. Tools could include automated testing tools like Selenium or TestComplete.

Case Studies of the V-Cycle Model in Action

Numerous successful projects have used the V-Cycle Model. For instance, the Mars Rover missions by NASA employed the V-Cycle Model to design and develop the rovers' embedded systems. Each stage of the model was meticulously followed, leading to the successful operation of these highly complex systems on Mars.

Another case study could be the development of modern pacemakers by medical device companies. The V-Cycle Model's rigorous validation and verification steps are crucial to ensuring the reliability of such life-critical devices.

Challenges and Solutions in Implementing the V-Cycle Model

While the V-Cycle Model provides a robust framework for system development, it also presents some challenges -

Changes in Requirements

The V-Cycle Model is not very flexible to changes in requirements once the design phase has begun. However, this can be mitigated by investing sufficient time and effort in the requirements elicitation and analysis phase.

Resource Allocation

The V-Cycle Model requires significant resources for testing. Solutions might involve the use of automated testing tools or the allocation of specific resources for testing during project planning.

A Deep Dive into Testing Methodologies

Testing is a crucial part of the V-Cycle Model. Here's a deeper look at some of the methodologies used -

White-Box Testing

This methodology tests internal structures or workings of an application, as opposed to its functionality. It requires detailed knowledge of the system's code.

Black-Box Testing

This method involves testing the functionality of the application without peering into its internal structures or workings.

Grey-Box Testing

As the name suggests, this is a mix of both white-box and black-box testing methodologies.

Non-Functional Testing

This type of testing checks the non-functional aspects of a system, such as system's performance, reliability, and usability.
